Heat Treating Services and Processing Capabilities
“We provide vacuum heat treating, carburizing, carbonitriding, induction hardening, flame hardening, tempering, metallurgical testing, and more for aerospace, oil & gas, manufacturing, construction, and industrial customers.”
Specialties and Solutions
Specialty Processing Services
- Deep Freeze
- Induction (customizable)
- Flame Hardening
- Shot Blasting
- Glass Beading
- Straightening
- Shrink Fit
- Masking
- Micro Hardness Testing
- Carbon Gradient
Furnaces
Industry Focused Service!

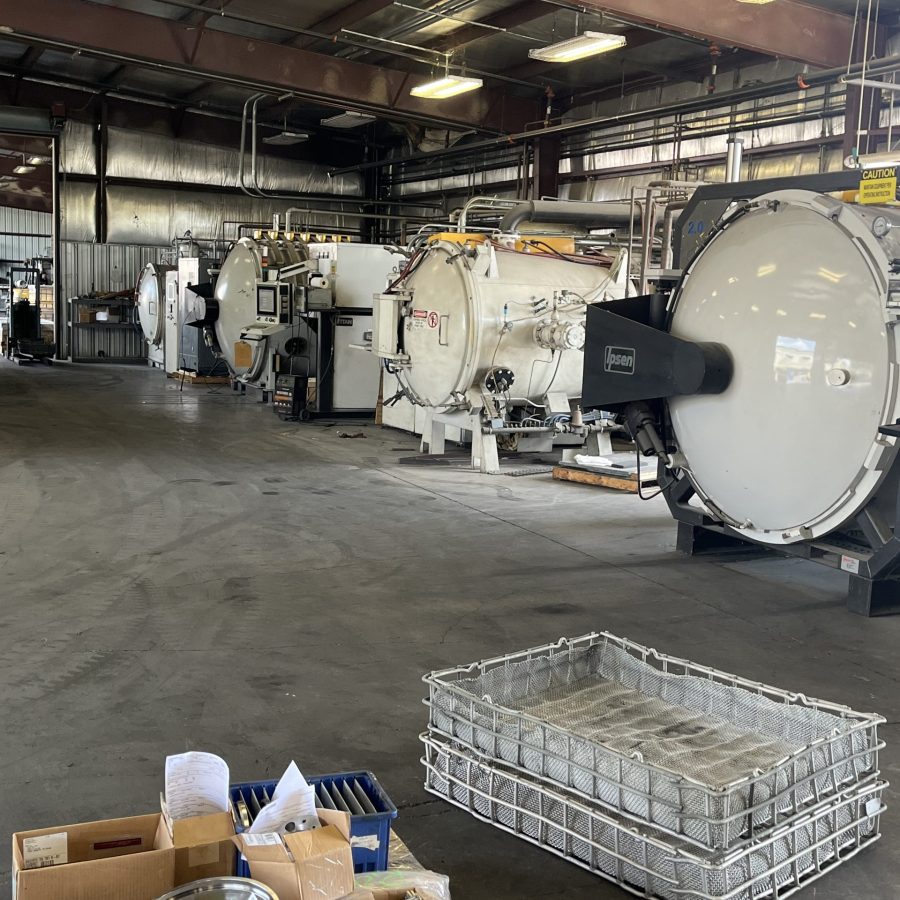

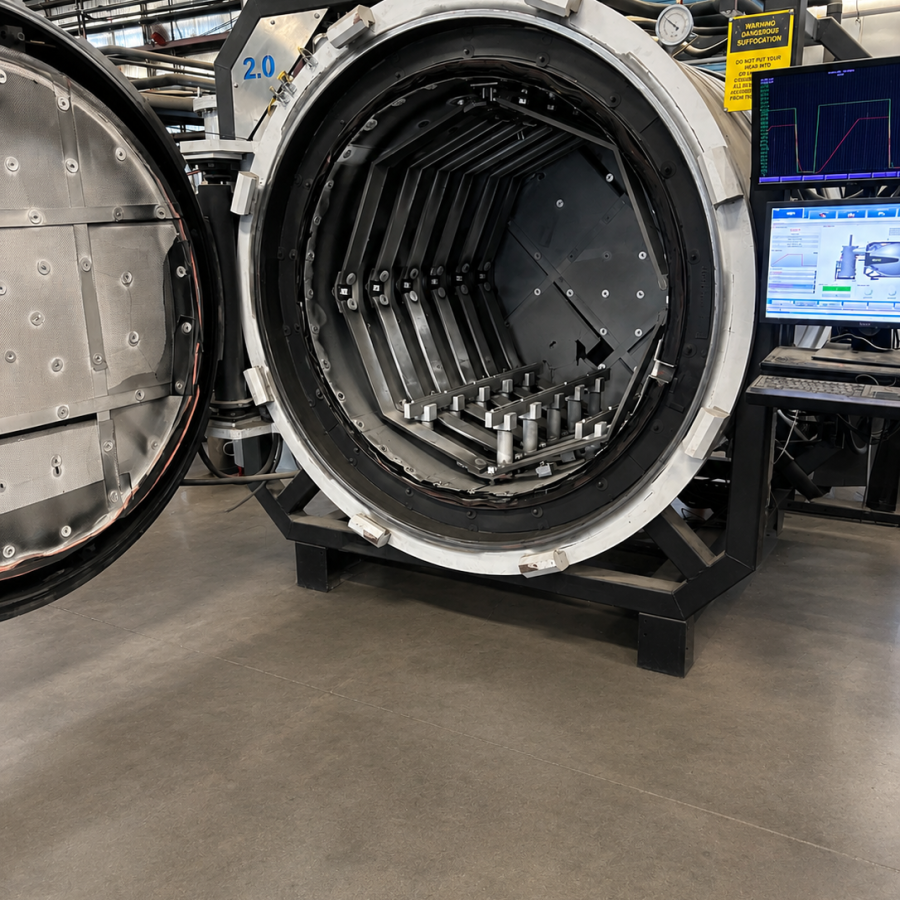

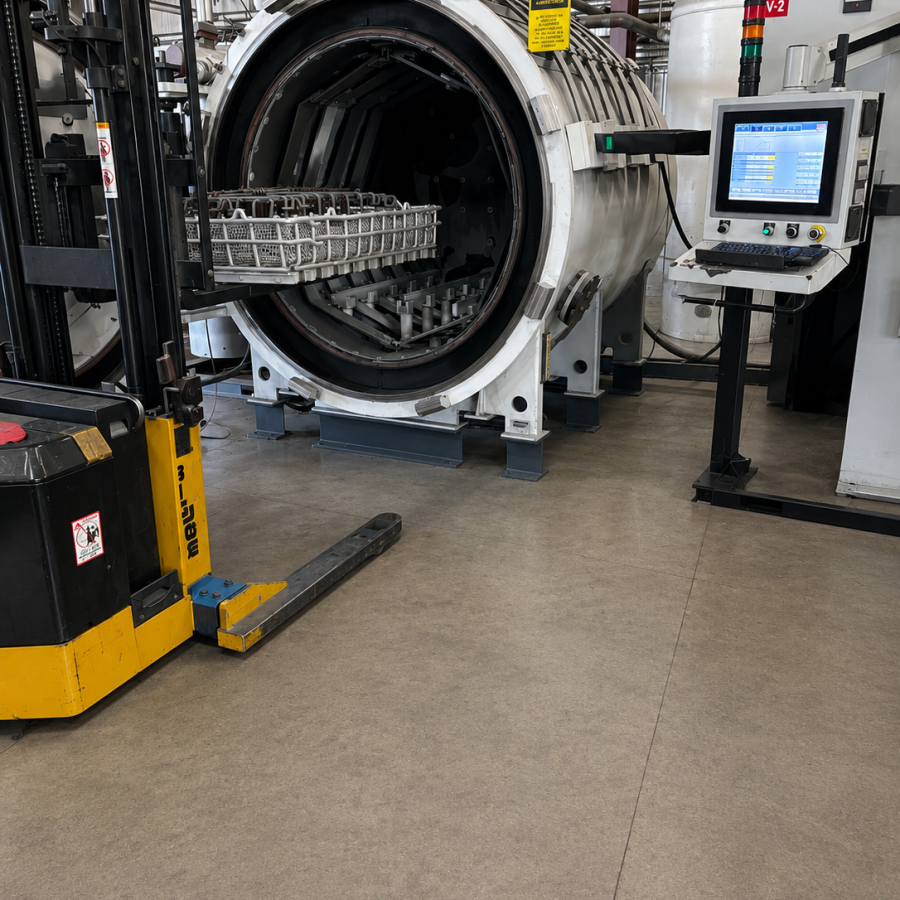

VACUUM FURNACE
-Turnaround
- 3 to 4 days.
-Load Size
- 24″W x 30″L x 18″H to 36″W x 48″L x 36″H
-Weight Capacity
- 600 lbs. – 3500 lbs
-Temperature
- 400 F – 2300 F
-Applications
- aerospace, tool steel, stainless steel, and precision components requiring a clean, controlled atmosphere
-Processes
- Hardening, Solution Anneal, Homogenize, Brazing, Temper, Stress Relieve, Austenitrizing, Vacuum Aging

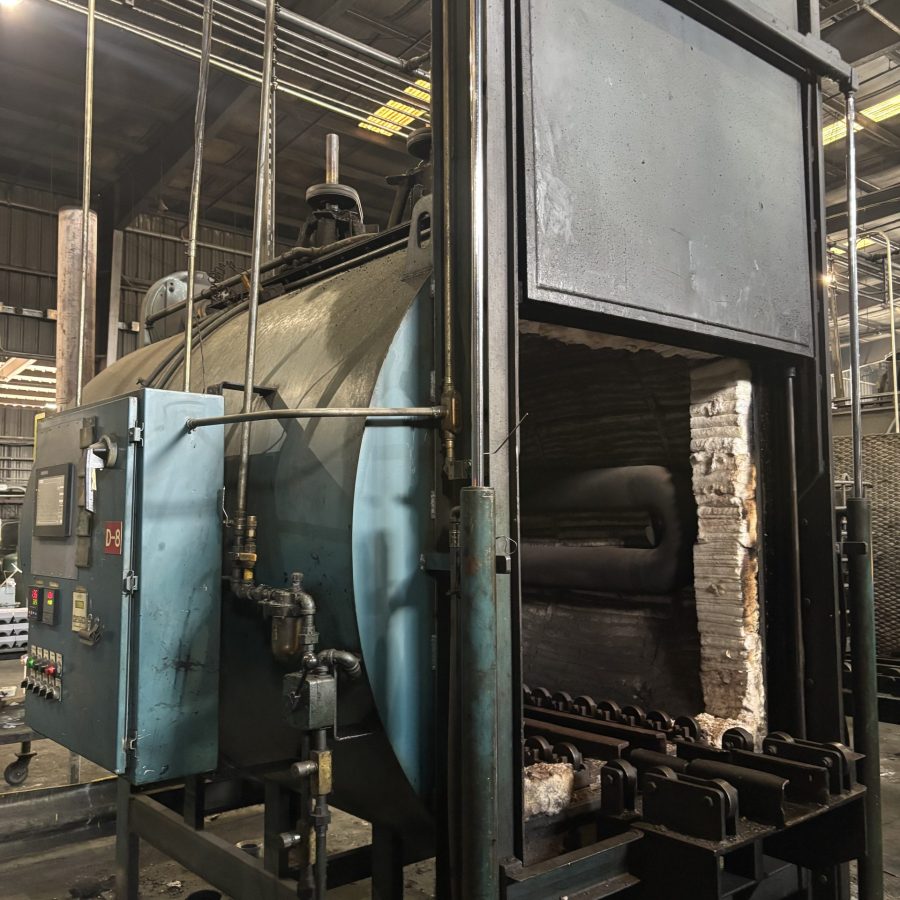

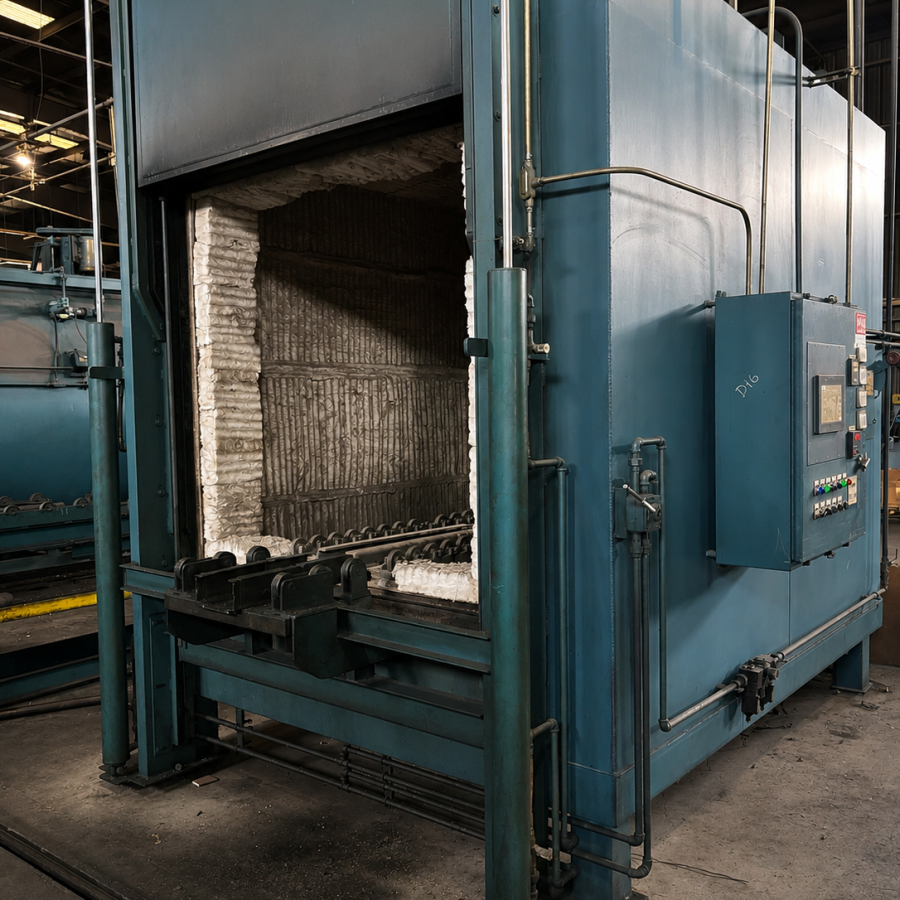

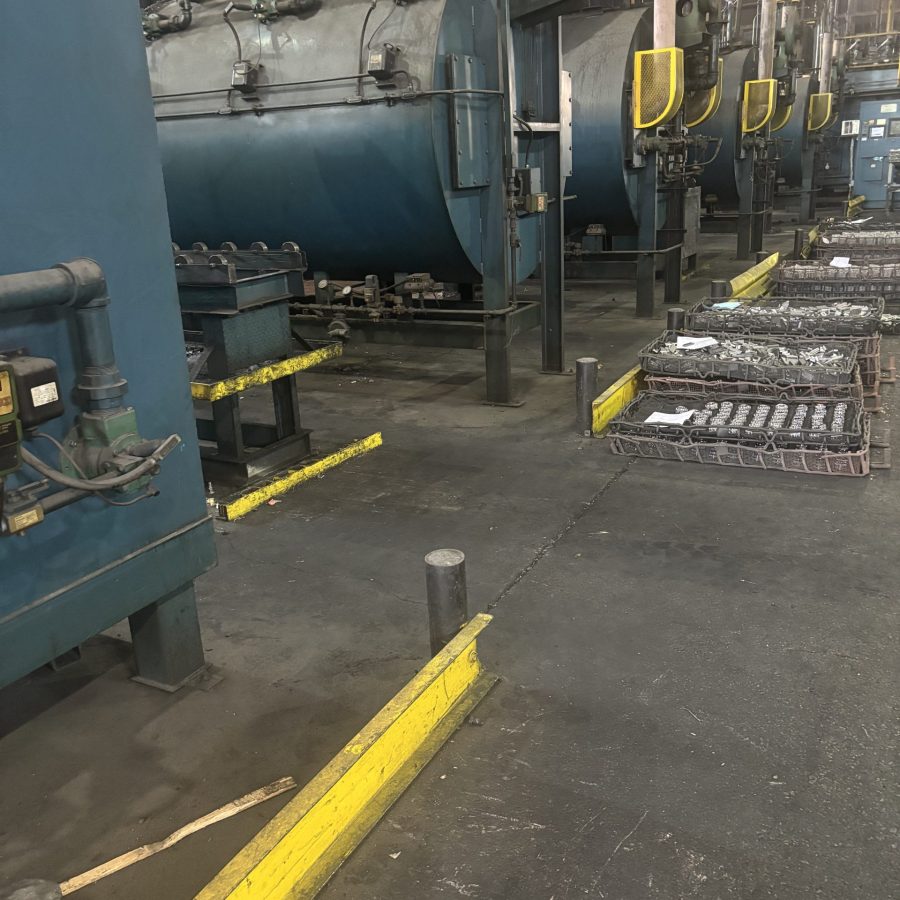

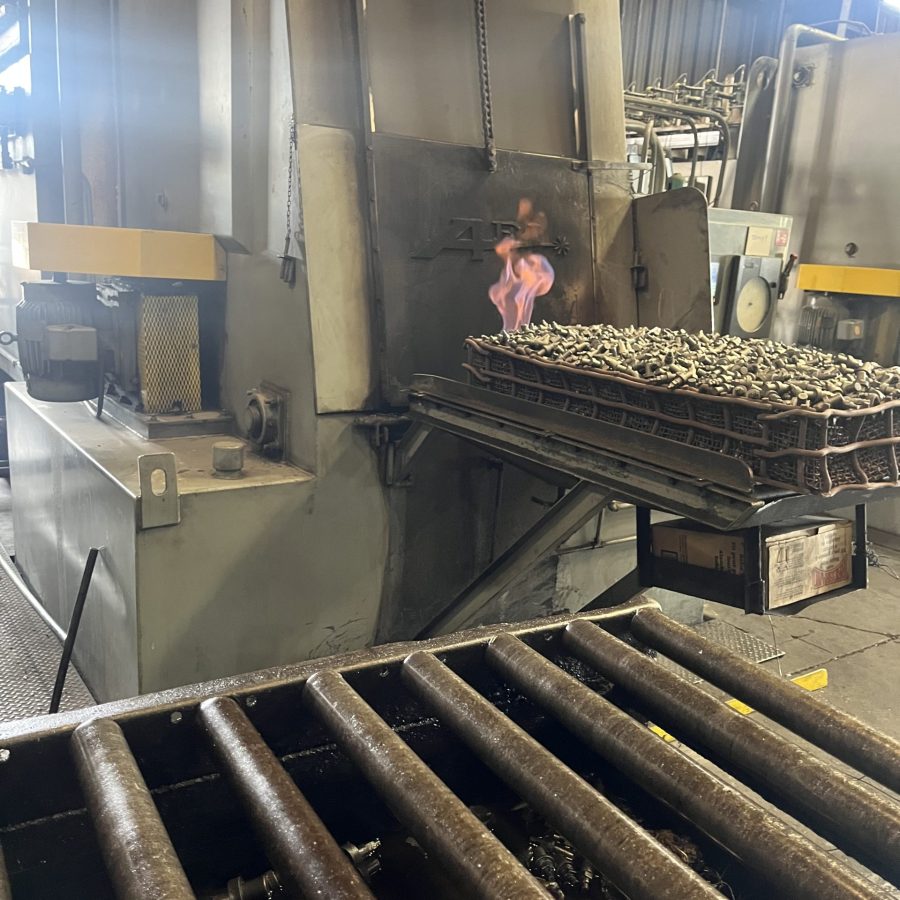

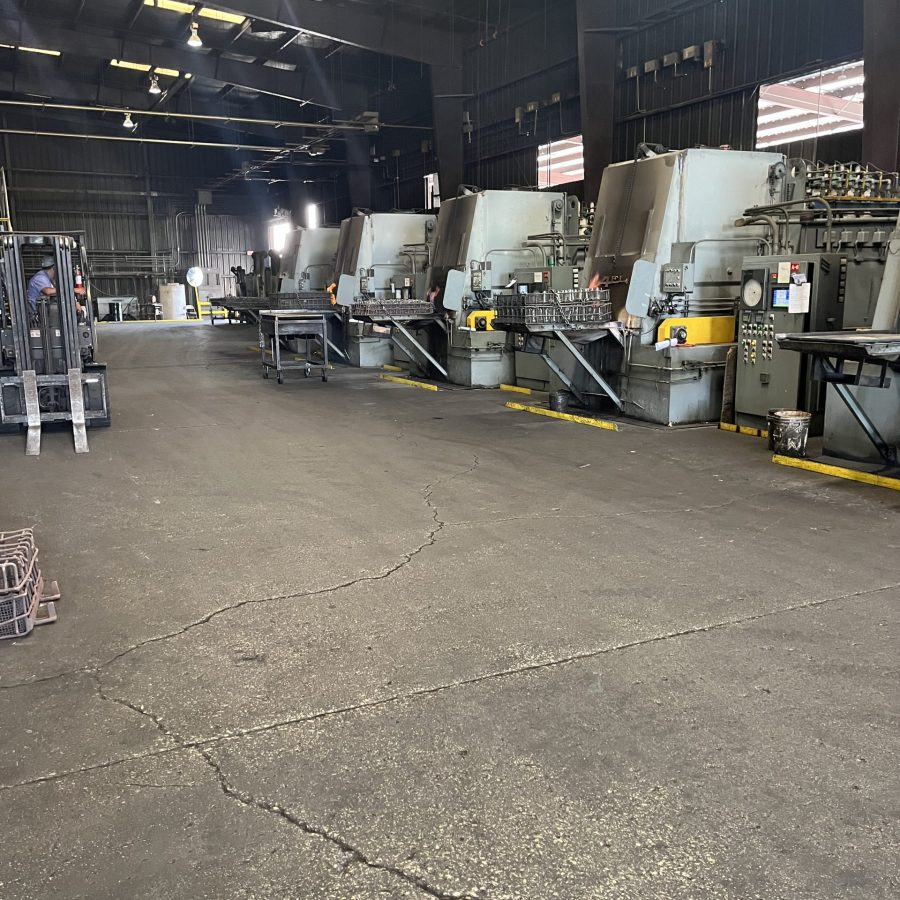

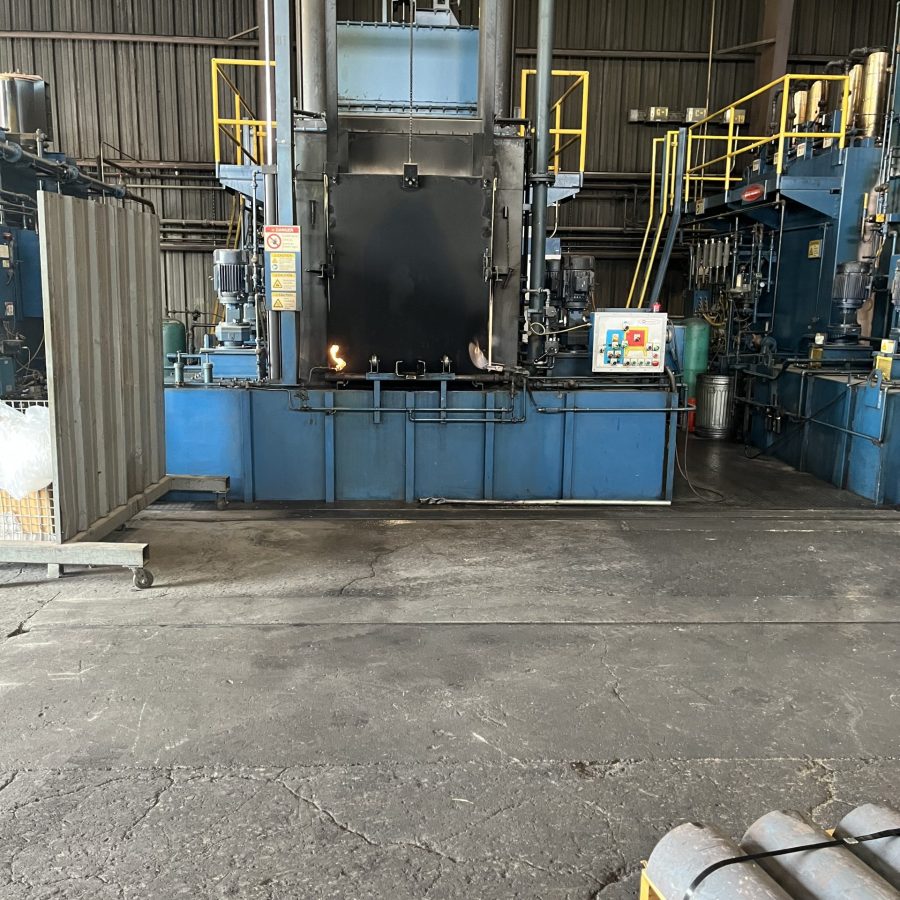

I.Q. BATCH FURNACE
-Turnaround
- 2 to 3 days
-Load Size
- 24″W x 30″L x 18″H to 36″W x 72″L x 44″H
-Weight Capacity
- 400 lbs – 6000 lbs
-Temperature
- 1300 F to 1900 F
-Applications
- Neutral hardening, and high-volume production parts requiring controlled carbon atmosphere processing and consistent case depth
-Processes
- Annealing, Quench & Temper, Normalize, Carburize, Carbon Restore, Austenitrizing, Carbonitriding

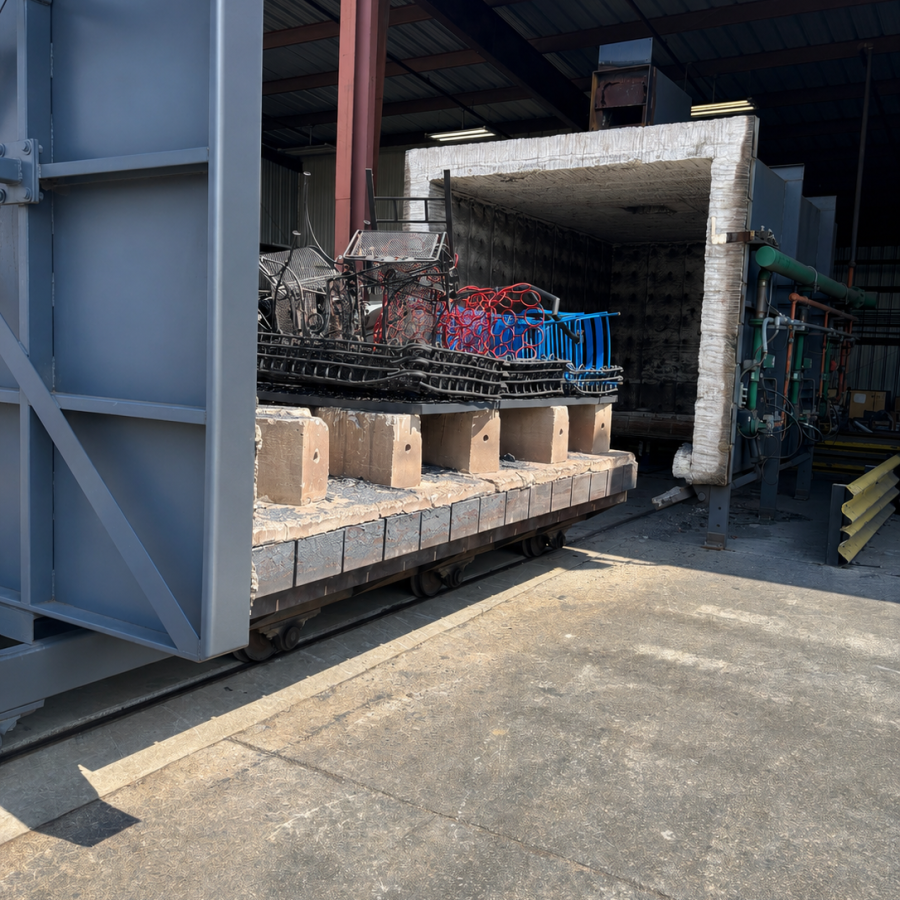

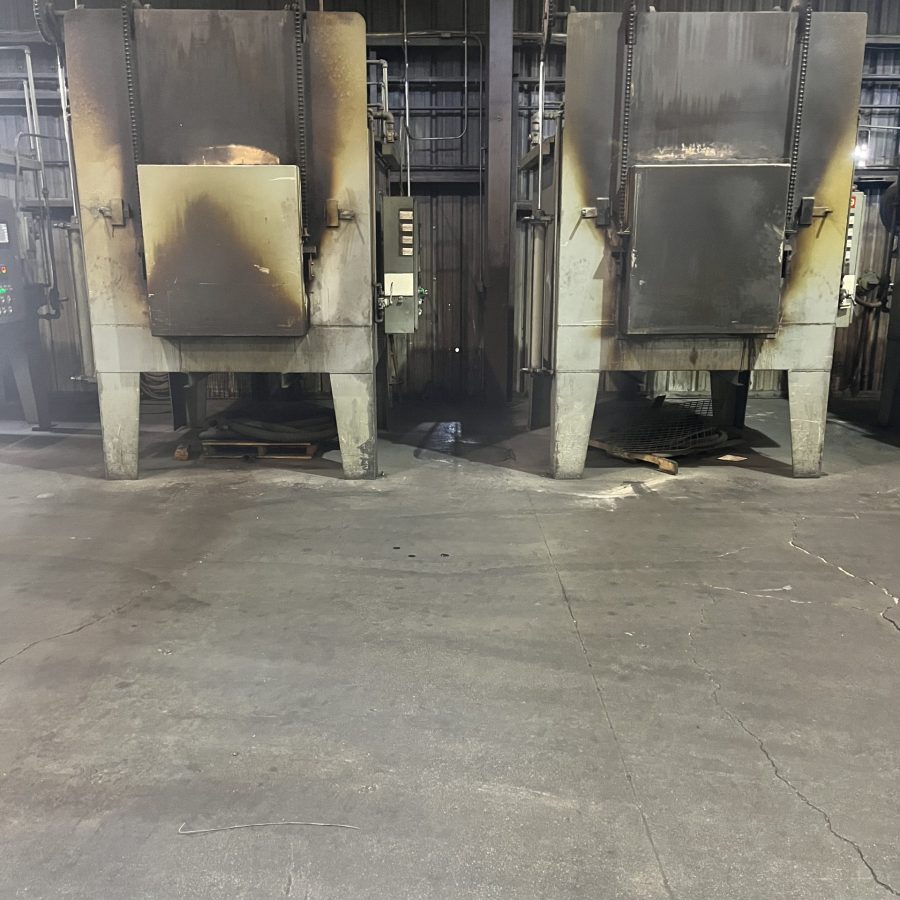

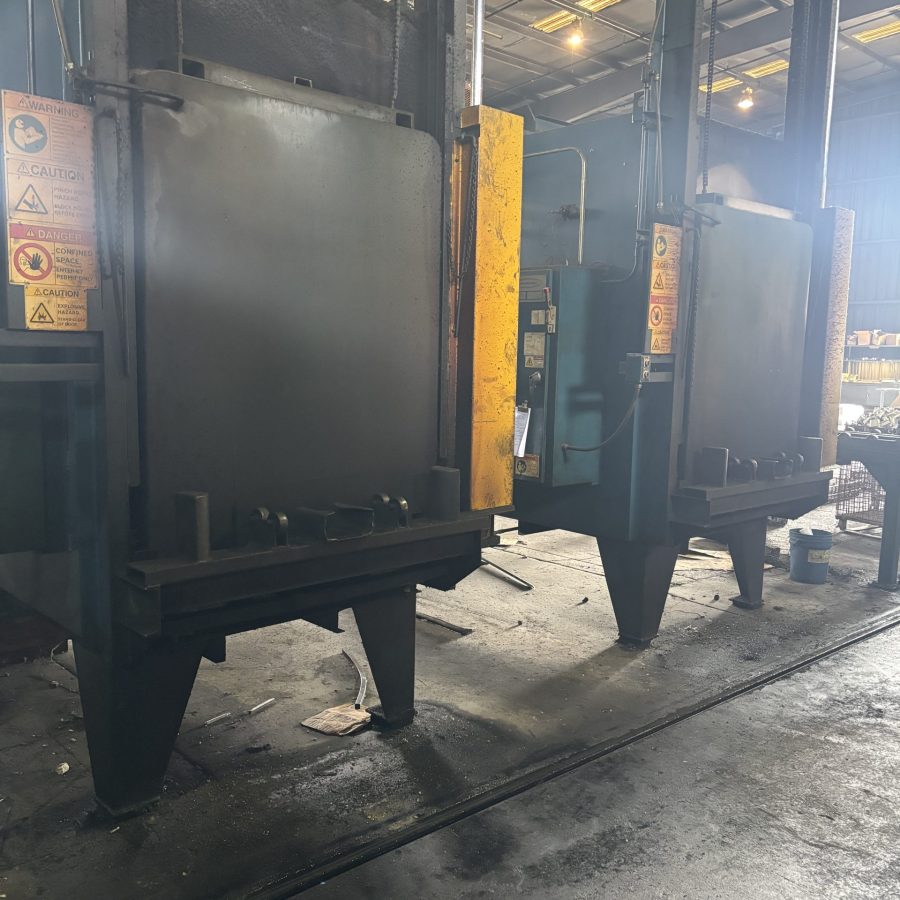

TEMPER FURNACE
-Turnaround
- 2 to 3 days
-Load Size
- 30″W x 48″L x 26″H to 84″W x 180″L x 72″H
-Weight Capacity
- 0 lbs – 6000 lbs
-Temperature
- 200 F – 1300 F
-Processes
- Tempering, Precipitation Hardening, Stress Relieving, Preheating, Subcritical Annealing, Solution Annealing(aluminum), Annealing, Burn Off
Ideal for post-hardening trestment to improve toughness and dimensional stability

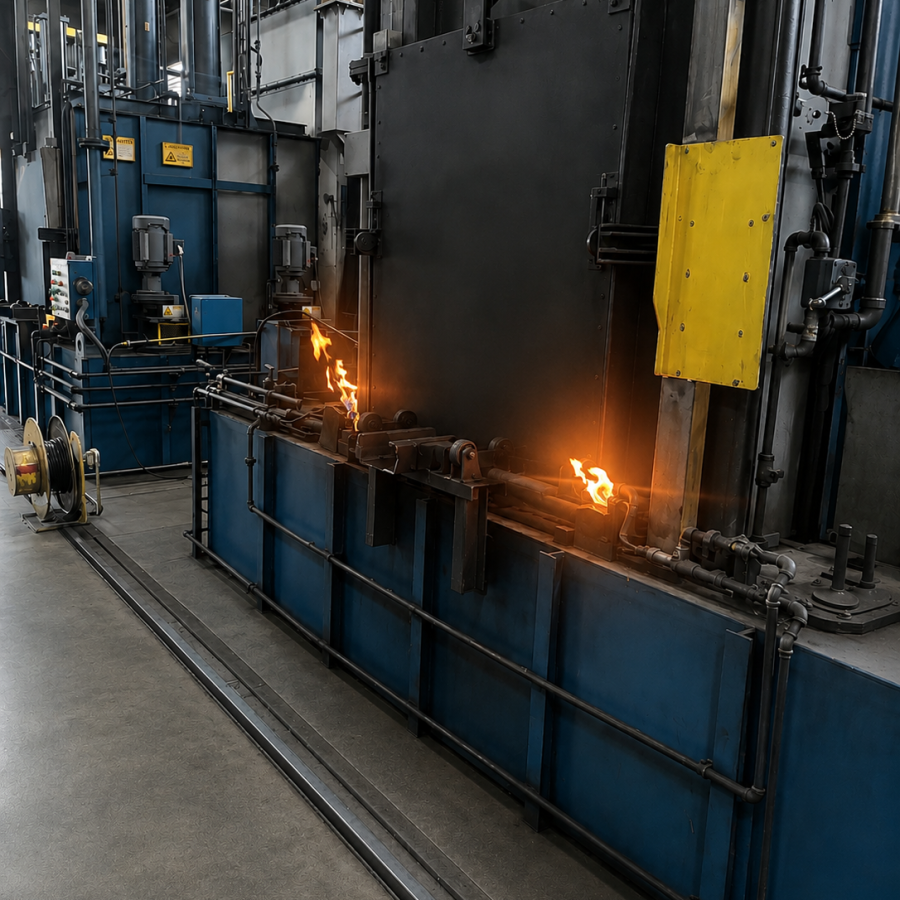

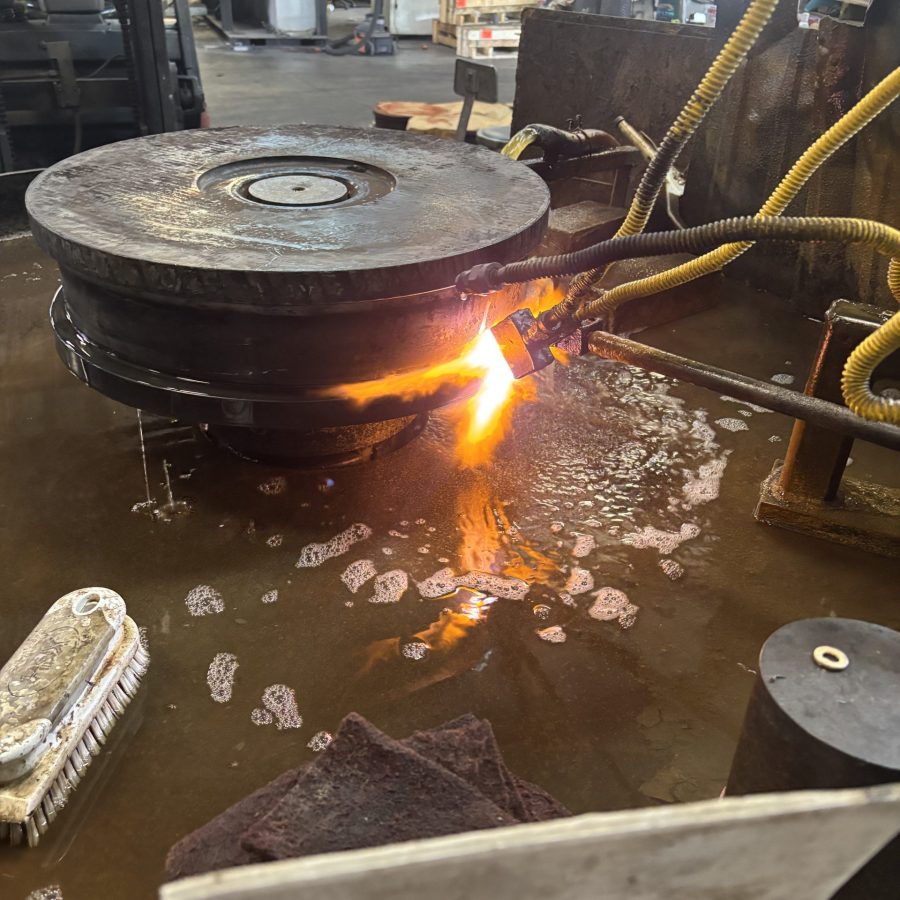

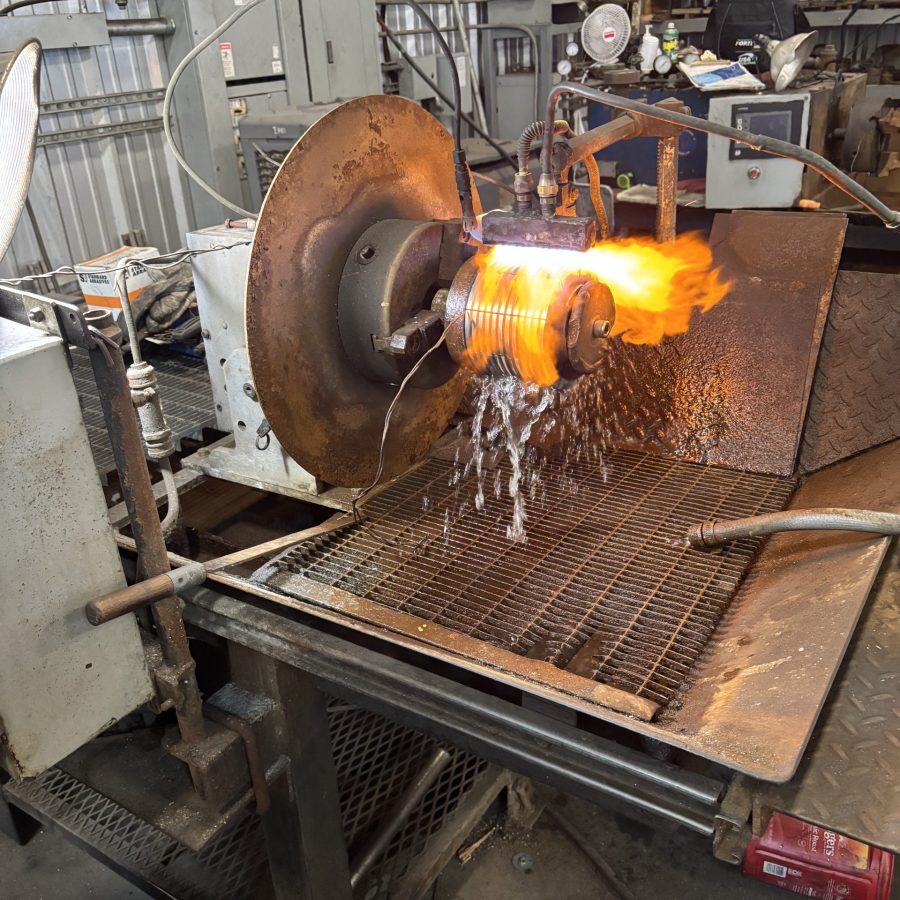

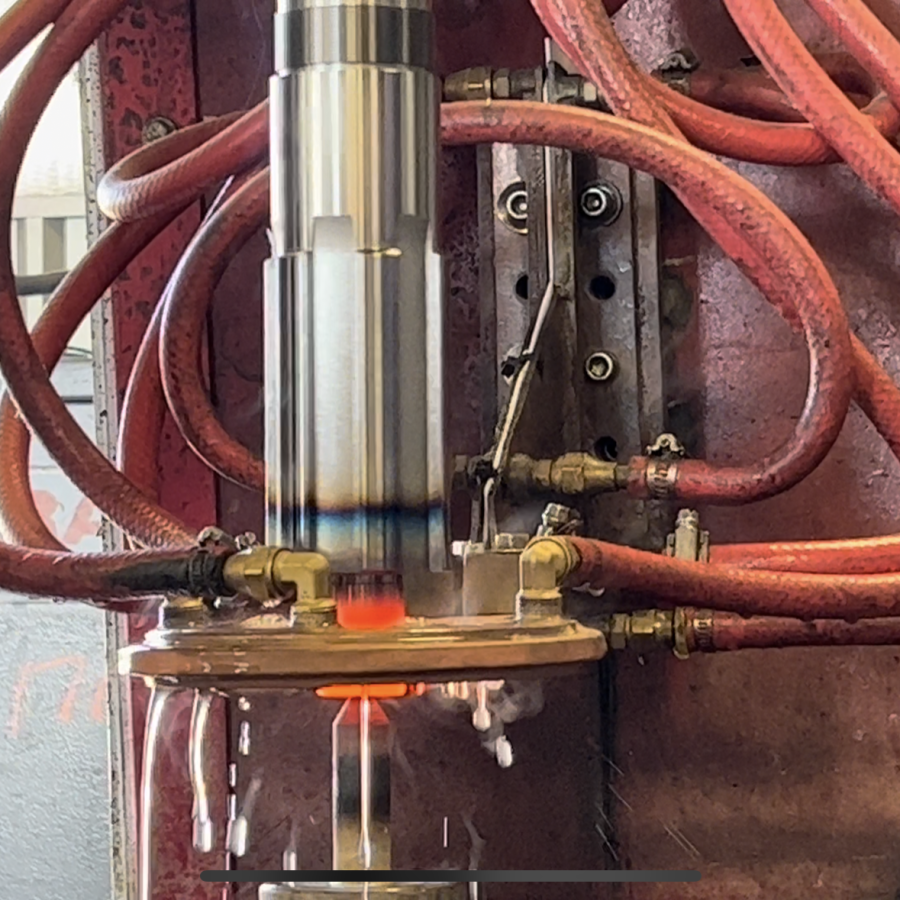

FLAME HARDENING AND INDUCTION
-Turnaround
- 7 days
-Load Size
- 36″ to 72″ long
-Weight Capacity
- Holds up to 800 lbs.
-Units for Mix Setups
- 25 Kw High Frequency Machines, 35 Kw High Frequency Machines, 60 Kw High Frequency Machines, 10 Kw Low Frequency Machines
- Misc. coils multi turn configurations. Single turn with quench up to 11″
- Scanner runs 48″ to 52″ and holds up to 350 lbs
-Applications
- Slips, Blades, Gears, Rings, Sprockets, Splines, Shafts, Rollers, Crank Wheel, Bearings, Cylinders, Sheaves Wheels
-Processes
- Induction Anneal, Induction Temper

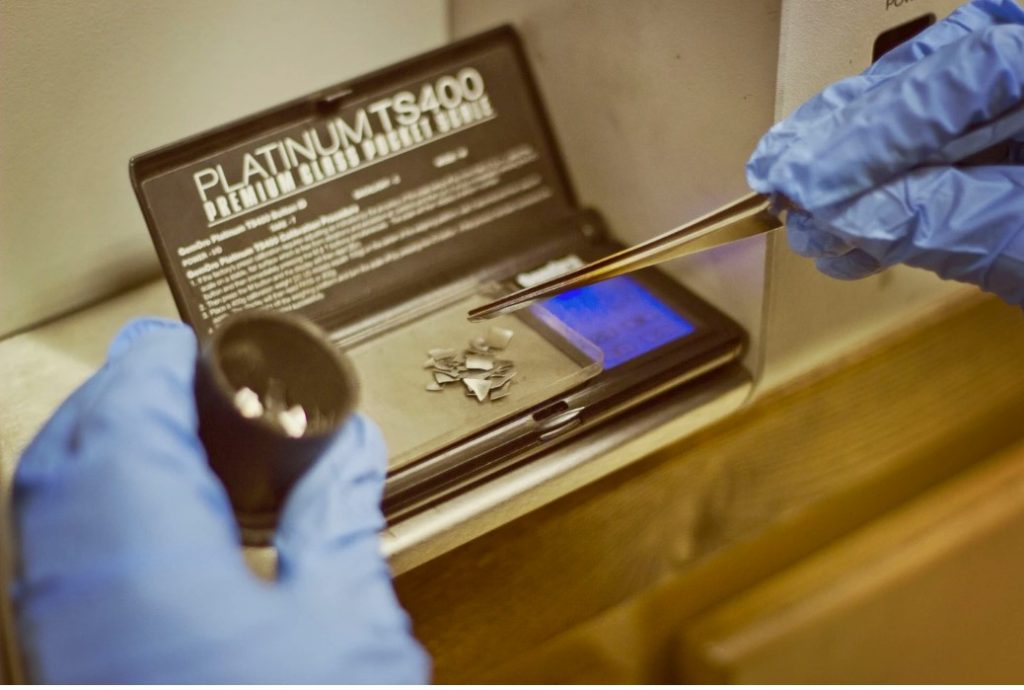

Lab
- Brinell Hardness Tester
- Rockwell Hardness Tester
- Mount Press
- Manual and Auto Polisher
- Micro Hardness Tester
- Sectioning Saw Auto and Manual
- Carbon Analyzer
- Inspection Hardness Tester
Need Heat Treating Services?
Fast turnaround, ISO-certified quality, and over 35 years of experince.
